Anode & Cathode Junction Boxes
Shunted junction boxes for current control and measurement

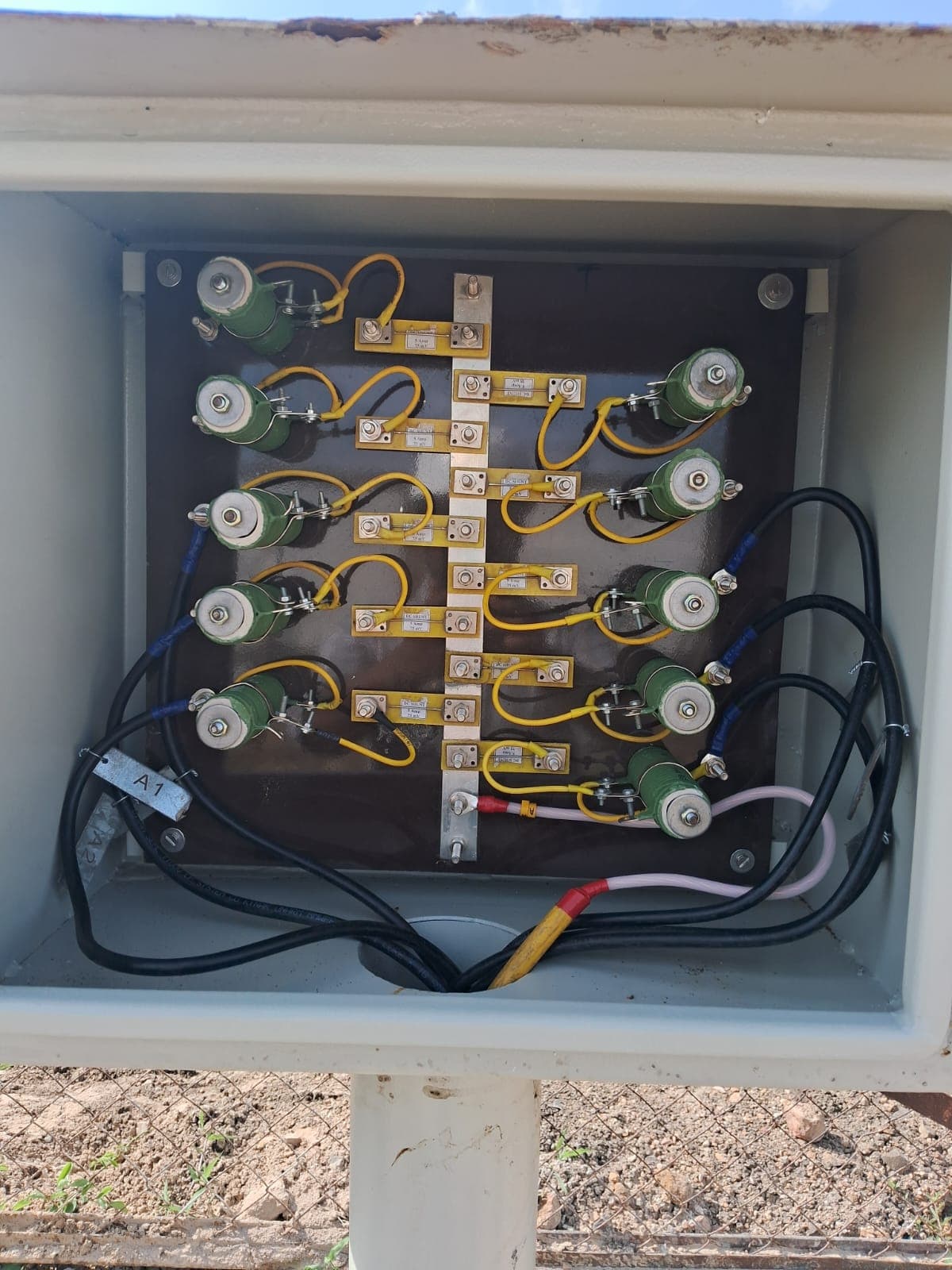

Anode and cathode junction boxes with brass terminal boards, calibrated shunts, variable resistors and links. These allow the current from each anode or to each drain point to be measured and balanced without breaking the circuit.
Technical Data
Specifications
- Types
- Enclosure
- Ways
- Shunts
- Control
- Protection
Specifications shown are indicative. Final ratings, sizes and materials are confirmed against your technical specification and the CP design calculation at enquiry stage.
Typical Applications
- Individual anode current measurement and balancing
- Drain point current control at CP stations
- Deep well ground bed anode monitoring
- Tank bottom and mounded bullet anode grids
We quote for both. Installation by the same team that supplied the material keeps responsibility with a single agency.
Contact Us
Material Enquiry
Get this quoted against your specification
Send us the drawing, the design calculation, or simply the quantity and size required. We will revert with a firm quotation and a delivery schedule.
